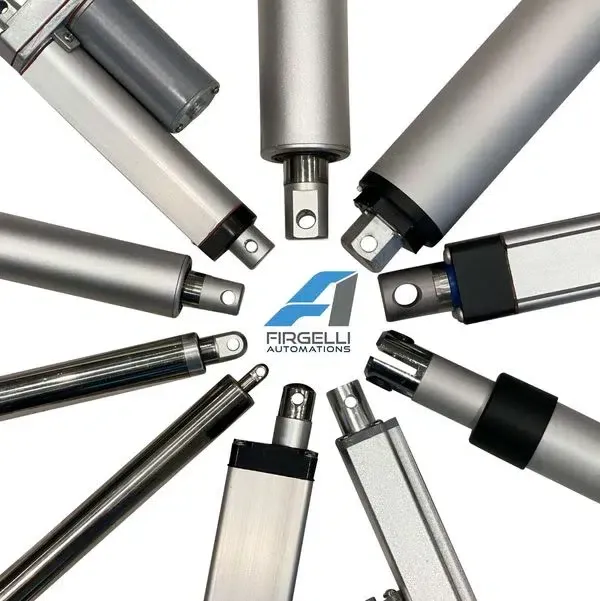

Selecting the right linear actuator can significantly impact the efficiency and performance of your application. Linear actuators are essential components in various industries, providing precise motion control in systems ranging from home automation to industrial machinery.

, How to Choose the Perfect Linear Actuator?, Days of a Domestic Dad

But before delving into the selection process, it’s crucial to understand what a linear actuator is and its primary functions. A linear actuator converts rotational motion into linear motion, which is necessary for tasks requiring linear movement such as lifting, pushing, or pulling. With numerous options available, finding the perfect match for your specific needs requires a thorough understanding of various factors.

1. Load Capacity

One of the most critical aspects of choosing a linear actuator is determining the load capacity it needs to handle. The load capacity refers to the maximum force the actuator can exert without compromising performance or durability. Selecting an actuator with an appropriate load capacity ensures that it can efficiently and safely manage the demands of your application.

When considering load capacity, think about the heaviest load the actuator will need to move. It’s also wise to factor in a safety margin to account for any unexpected increases in load or additional forces that may be applied during operation. This precaution helps in avoiding overloading the actuator, which can lead to premature wear or failure.

2. Speed Requirements

The speed at which a linear actuator operates is another crucial factor. The speed is typically measured in inches or millimeters per second and can vary widely between different actuators. The choice of speed depends on the specific requirements of your application.

For applications where precise and slow movements are necessary, such as in medical equipment, a slower actuator is preferable. Conversely, applications that demand rapid movements, like automated doors or windows, will benefit from a faster actuator. Balancing speed with load capacity is essential, as higher speeds often result in reduced load capacity.

3. Stroke Length

The stroke length of a linear actuator refers to the distance it can travel from its fully retracted to the fully extended position. Choosing the correct stroke length is vital to ensure the actuator can achieve the desired range of motion in your application.

To determine the appropriate stroke length, measure the distance between the start and end points of the required movement. It’s important to select an actuator that provides a little extra stroke length beyond your needs to account for any adjustments or misalignments that may occur during installation or operation.

4. Environmental Conditions

Environmental factors play a significant role in the performance and longevity of a linear actuator. Consider the conditions in which the actuator will operate, such as temperature, humidity, exposure to dust or chemicals, and potential contact with water.

Actuators designed for harsh environments are typically made from robust materials like stainless steel or have protective coatings to resist corrosion. For outdoor applications or those exposed to moisture, selecting an actuator with a high IP (Ingress Protection) rating ensures reliable performance under challenging conditions.

5. Matching the Actuator to Your Application: Power Source Compatibility

Linear actuators can be powered by various sources, including electric, pneumatic, or hydraulic power. The choice of power source depends on the availability and suitability of your application.

Electric actuators are popular due to their ease of control and precision. They are ideal for applications requiring fine adjustments and are often used in home automation and robotics. Pneumatic actuators are driven by compressed air and are suitable for applications needing quick, repetitive movements. Hydraulic actuators, powered by pressurized fluid, offer high force and are commonly used in heavy-duty industrial applications.

6. Control Options

The level of control you need over the actuator’s movement is another consideration. Modern linear actuators come with various control options, ranging from simple manual controls to advanced programmable systems.

For applications requiring precise positioning and synchronized movements, actuators with feedback mechanisms such as potentiometers, encoders, or limit switches are beneficial. These features enable accurate control and monitoring of the actuator’s position, ensuring reliable and repeatable performance.

7. Duty Cycle

The duty cycle of a linear actuator refers to the ratio of operating time to resting time. It’s an important factor to consider, especially for applications requiring continuous or frequent operation.

Actuators with a high duty cycle rating can operate for longer periods without overheating or experiencing wear. Understanding the duty cycle requirements of your application helps in selecting an actuator that can handle the operational demands without compromising performance or longevity.

8. Additional Considerations: Noise Level

In certain applications, the noise level of the actuator can be a critical factor. Electric actuators, for example, are generally quieter than pneumatic or hydraulic actuators. If your application requires a low-noise environment, such as in medical or residential settings, choosing a quieter actuator is essential to maintain comfort and reduce disturbances.

9. Size and Weight

The physical size and weight of the actuator may influence its suitability for your application. Ensure that the actuator can be conveniently integrated into your system without causing space constraints or adding unnecessary weight.

Compact and lightweight actuators are ideal for applications where space is limited or where the actuator needs to be portable. However, ensure that the smaller size does not compromise the actuator’s performance or load capacity.

10. Cost and Budget

While cost should not be the sole deciding factor, it’s important to consider your budget when choosing a linear actuator. The price of actuators can vary significantly based on their features, capabilities, and quality.

Investing in a high-quality actuator that meets all your requirements can save you money in the long run by reducing maintenance costs and extending the lifespan of your equipment. However, it’s essential to balance cost with the specific needs of your application to ensure you get the best value for your investment.


Choosing the perfect linear actuator involves carefully evaluating various factors such as load capacity, speed, stroke length, environmental conditions, power source compatibility, control options, duty cycle, noise level, size, weight, and cost. By understanding these key considerations, you can select an actuator that precisely matches the demands of your application, ensuring optimal performance and reliability.
